Spare part list
Parts catalogue
Parts list

Manufacturer : Yamaha
Model : DT175
Type : 2K4
Year of construction: 1978

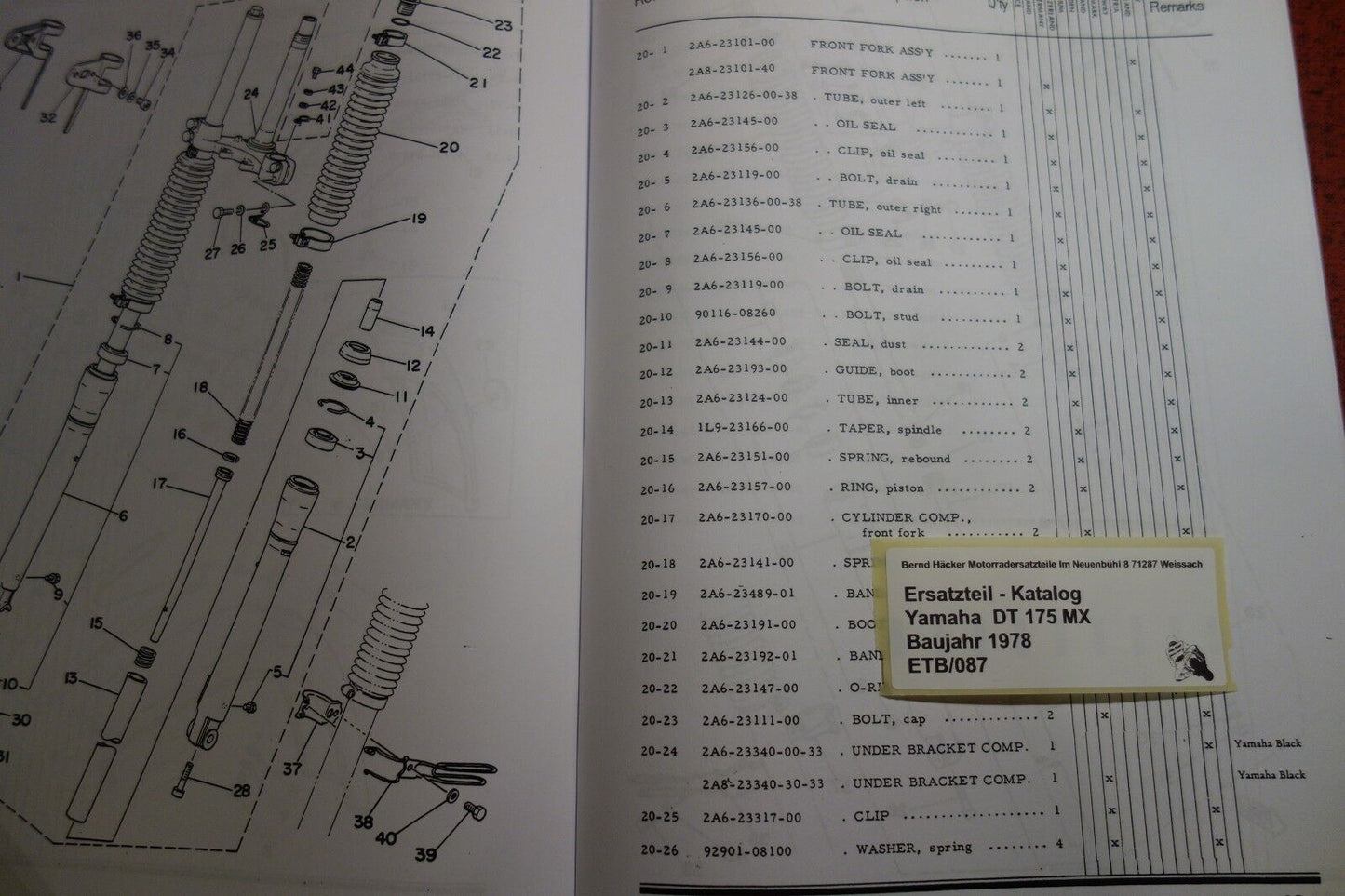

Spare parts catalogues or parts lists show a vehicle
in all individual parts.
This is done in the form of exploded drawings,
so that every smallest detail
can be seen in the corresponding installation position.
Each spare part is marked with its exact
Part description or part name and spare part number.
Even if parts are no longer available from the manufacturer,
is the spare parts catalogue when searching for spare parts
and a very valuable help when disassembling and assembling.
Also indispensable when purchasing spare parts for used parts.

with small storage / age signs.

Size: DINA4

Language: English

Storage location :
ETB/0 87
